eDisplay Core Values
1.Architectural Revolution
a. Seamless Material-Display integration: Instantly convert stone,wood, or brick facades into 4K displays-disappearing when powered off. Interior surfaces such as walls, ceilings, and floors become interactive displays.
b. Invisible design: integrated display units with the building material, zero-exposure design, replacing traditional external LED screens.
2. Solar-Storage-Display System
Paired with eBIPV(eSolarFacade), this system cuts external power consumption by 80%, offering a sustainable "display-generation-storage"solution.
3. Unlocking Commercial Value
Outdoor: Facades transform into 2000-nit digital billboards,The Ad revenue boosts space value.
Indoor: Retail walls instantly become immersive product displays,increasing customer stop time by 40%.
More selection
eDisplay Stone Ridged Andes Yellow
Specifications (mm):
640X160,960X160,960X320
1280X640, 1920X640
Custom dimensions available
Customizable Curved surfaces
Customizable Color options

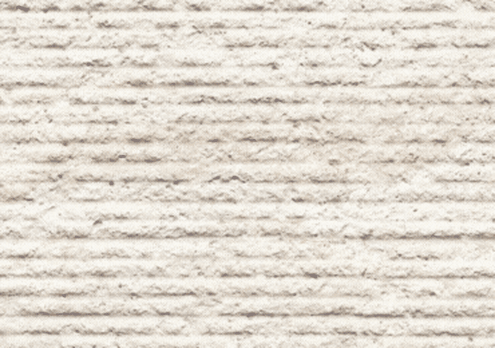

eDisplay Stone Ridged Andes White
Specifications (mm):
640X160,960X160,960X320
1280X640, 1920X640
Custom dimensions available
Customizable Curved surfaces
Customizable Color options
eDisplay Stone Ridged Loki Mountain Medium Gray
Specifications (mm):
640X160,960X160,960X320
1280X640, 1920X640
Custom dimensions available
Customizable Curved surfaces
Customizable Color options
eDisplay Stone Ridged Bush Hammered Magnolia
Specifications (mm):
640X160,960X160,960X320
1280X640, 1920X640
Custom dimensions available
Customizable Curved surfaces
Customizable Color options
eDisplay Stone Ridged Bush Hammered Ash Grey
Specifications (mm):
640X160,960X160,960X320
1280X640, 1920X640
Custom dimensions available
Customizable Curved surfaces
Customizable Color options
eDisplay Stone Ridged Bush Hammered Pale Yellow
Specifications (mm):
640X160,960X160,960X320
1280X640, 1920X640
Custom dimensions available
Customizable Curved surfaces
Customizable Color options
eDisplay Wood Caesious
Specifications (mm):
640X160,960X160,960X320
1280X640, 1920X640
Custom dimensions available
Customizable Curved surfaces
Customizable Color options

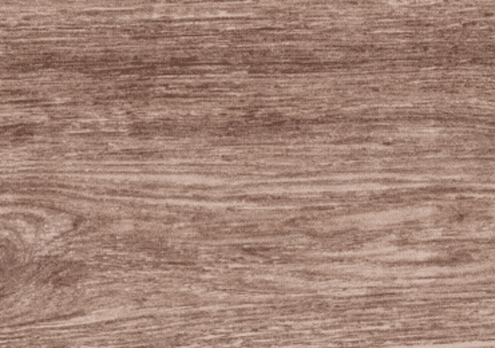

eDisplay Wood Light Brown
Specifications (mm):
640X160,960X160,960X320
1280X640, 1920X640
Custom dimensions available
Customizable Curved surfaces
Customizable Color options
eDisplay Wood Autumn Yellow
Specifications (mm):
640X160,960X160,960X320
1280X640, 1920X640
Custom dimensions available
Customizable Curved surfaces
Customizable Color options
eDisplay Crocodile Leather F001
Specifications (mm):
640X160,960X160,960X320
1280X640, 1920X640
Custom dimensions available
Customizable Curved surfaces
Customizable Color options
eDisplay Crocodile Leather H02
Specifications (mm):
640X160,960X160,960X320
1280X640, 1920X640
Custom dimensions available
Customizable Curved surfaces
Customizable Color options
eDisplay Crocodile Leather Y01
Specifications (mm):
640X160,960X160,960X320
1280X640, 1920X640
Custom dimensions available
Customizable Curved surfaces
Customizable Color options
eDisplay
Winner of Gold Award in 76th Nurenburg International Invention Exhibition
eDisplay
Technical Parameters
Panel size
Outdoor (night use only)：640×160/640×320/960×320/1280×640/1600×480/1920×480 mm
outdoor (for day and night use)：640×320/1280×320/1280×640/1920×320 mm
Indoor：640×160/960×160/960×320/1280×640/1600×480/1920×480 mm
Resolution
Outdoor (night use only): P4
Outdoor (day and night use): P6.67
Indoor: P2.5
Pixel density
Outdoor (night use only): 62500 points/㎡
Outdoor (day and night use): 22500 points/㎡
Indoor: 16 points/㎡
White balance brightness
Outdoor (night use only): 1000 – 2000 cd/㎡
Outdoor (day and night use): 4000 – 5000 cd/㎡
Indoor: ≥800 cd/m² adjustable
Color temp.
Outdoor (night use only): 3000 – 15000K
Outdoor (day and night use): 6500 – 8000K
Indoor: 3000 – 15000K
Power consumption
Outdoor (nighttime use only): Maximum ≤ 1200W/m², Average ≤ 750W/m²
Outdoor (day and night use): maximum 520W/m², average 173W/m²
Indoor: Maximum ≤861W/m², average ~287W/m²
Refreshing freq.
Outdoor (night use only): 50 – 60 Hz
Outdoor (day and night use): 60 Hz
Indoor: 50 – 60 Hz
Frame rate
Outdoor (night use only): ≥1920 Hz
Outdoor (day and night use): 3840 Hz
Indoor: ≤3840 Hz
Working temp.
Indoor and outdoor (day and night use): -20 ~ 50°C
Control system adaptable
Outdoor (night use only): Colorlight
Outdoor (day and night use): CHIPSSHOW / Windows
Interior: Colorlight
Maintenance method
Indoor and outdoor (day and night use):Back-access Maintenance
Remarks
Outdoor (night use only):One finished panelincludes cable,power supply, receivingcard.
Application

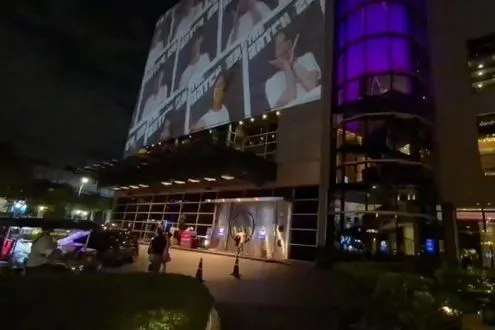

Building exterior walls
"The building exterior instantly turns into an 8K movie screen, starting to play meteor showers across the whole wall. Innovative materials create stunning visuals, transforming walls into dreamy realms. Try it now!"
Building exterior walls
"The building wall instantly transforms into a festive celebration screen, lighting up urban spaces with colorful scenes. Unique materials bring new vitality to walls, perfect for adding a festive vibe!"
Building exterior walls
"This isn't just a screen; it's a footnote to a city's prosperity! Dynamic commercial giant screens break static building boundaries, turning every facade into a high-value commercial showcase. Don't miss out!"
Hotel Feature Walls
"The whole stone wall "live - streams" cosmic stars, bringing the vast starry river into the hotel. Unique stone and innovative tech blend for a stunning visual feast, elevating hotel style."

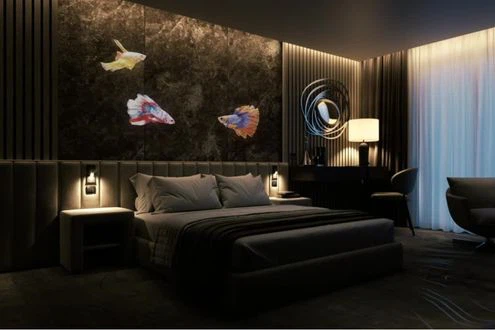

Guest Room Walls
"The guest room wall resembles an undried ink - wash long sleeve, transforming with dawn and dusk. Quality materials create a poetic vibe for guests to enjoy a cozy stay."
Shop Walls
"The wall is still like natural stone and dynamic as a smart vision. It tells brand stories amid art - tech fusion, attracting customers and enhancing shop charm. "
Hotel Dining Walls
"The dining wall transforms into a flowing data galaxy. The ultra - tech ordering screen reshapes the dining ritual on a light - year scale. Innovative materials blend tech and dining for upgraded hotel dining."

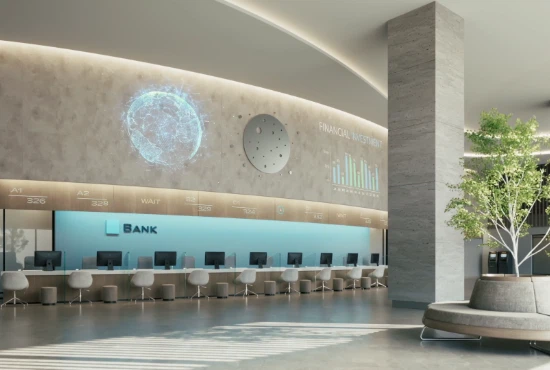

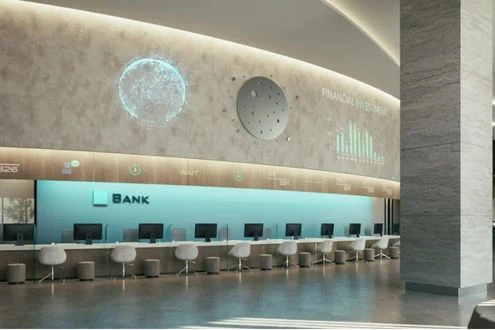

Public Space Walls
"The public space wall's stone material instantly becomes a smart info screen, combining display and decor. Unique design breaks tradition, adding tech charm to public areas. "
Public Space Walls
"The public space wall is no longer cold but uses interaction as a melody to write a symbiotic story of urban space. Quality materials create a cozy vibe for harmonious human - space interaction. "

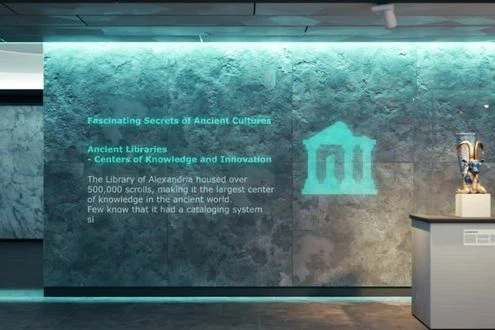

Walls
"The wall sheds its dullness and becomes a breathing living history book, building a new bridge for people to connect with the past. Unique materials endow the wall with cultural connotations, enhancing space style. "

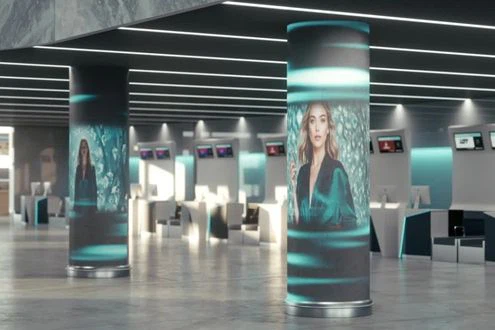

Public Space Column
"True public art makes every beam of light a measurable commercial poem. Innovative materials create columns, adding commercial and artistic charm to public spaces. "
Public Space Column
"Columns break free from static constraints, transforming into vertically flowing light and reshaping the commercial narrative of public spaces. Quality materials create dynamic columns, attracting attention and boosting commercial value."
Installation

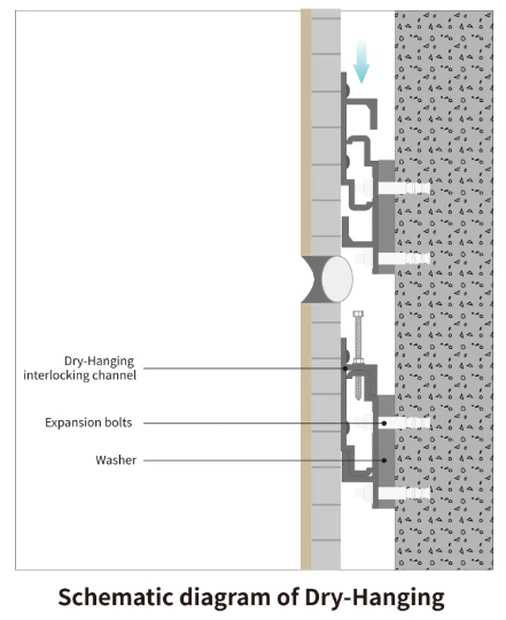

Use a laser rangefinder and digital level for wall positioning. Secure the custom keel with an impact drill using mechanical anchoring. Align the panel slots with the keel for initial fixation, then fine-tune and reinforce with specialized connectors to ensure precision and efficiency.
1.Attach/Secure the aluminum brackets to the back of the honeycomb panel with bolts and nuts.
2.Secure the aluminum rail with expansion bolts to the solid wall. Insert the aluminum brackets of honeycomb panel into the aluminum rail on the solid wall, then secure the brackets to the rail with screws (bolts and nuts).
Maintain
1. Cleaning:
After acceptance, the frequency of cleaning should be determined based on the level of wall contamination, with a minimum of once a year.
Use hand soap mixed with tap water, and avoid using organic solvents.
2. Curtain wall inspection and maintenance:
A comprehensive inspection of the curtain wall should be conducted every five years, includ ing the panels, sealing strips, and sealants.
Tighten any loose bolts, and for corroded connectors, remove rust and repaint or replace them.
Loose or damaged panels should be repaired or replaced.
Sealants and sealing strips that have fallen off or are damaged should be repaired or replaced.
Damaged components or connectors should be replaced or reinforced if the anchoring is loose
Regularly check the drainage system, and clear any blockages.
Any loose or damaged hardware should be replaced.
It should be completely exterminated after a natural disaster.
Carbon-Neutral Building System
PHOMI Solutions
One partner, Complete coverage:
Exterior: walls and floors
Interior: wall, ceiling and floor
All your needs met through a single supplier
Substantial Cost Efficiency:
Reduce total decoration expenses by20-30% with our comprehensive building solutions
Complete Zero-Carbon Building Solution
Replace traditional high polluting materials with our integrated exterior and interior eCovering system
