Features
Unlimited Material Expressiveness:
Achieves the same effect as natural materials like stone, wood, and brick, seamlessly integrated with the facade.
Breaking Traditional Photovoltaic Limits:
Over 95% of buildings use non-glass curtain walls, while regular BIPV is limited to glass facades and windows. eBIPV(eSolarFacade) breaks this limits,enabling flexible use in various architectural styles, expanding the application of photovoltaic technology in the building sector.
Higher Efficiency, Lower Carbon Emissions:
eSolarFacade offers over 60% higher power conversion efficiency than glass BIPV with 60% transmittance, reducing carbon emissions by over 54.6%.
More Customization Options:
Beyond power generation, eBIPV(eSolarFacade) can be tailored for display, insulation, negative ion release, and more, enhancing building performance and comfort.
More selection
eBIPV(eSolarFacade) Stone Ridged Plain White
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolarFacade) Stone Ridged Andes White
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolarFacade) Stone Ridged Andes Yellow
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options

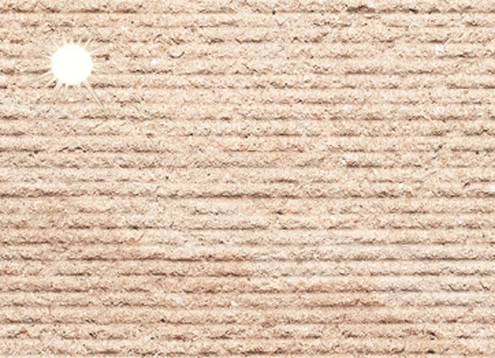

eBIPV(eSolarFacade) Stone Ridged Nile Medium Yellow
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options

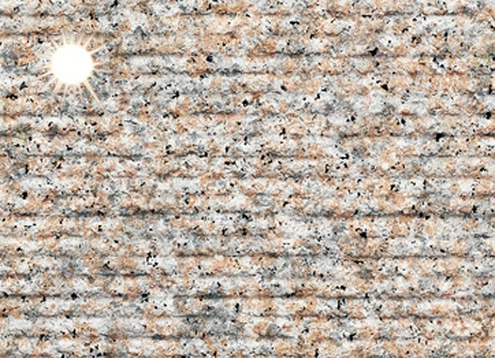

eBIPV(eSolarFacade) Stone Ridged Gold Sesame
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolarFacade) Stone Ridged Dandy Gray
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolarFacade) Stone Ridged Muti-color Rust
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolarFacade) Stone Ridged Fantasy Red
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options

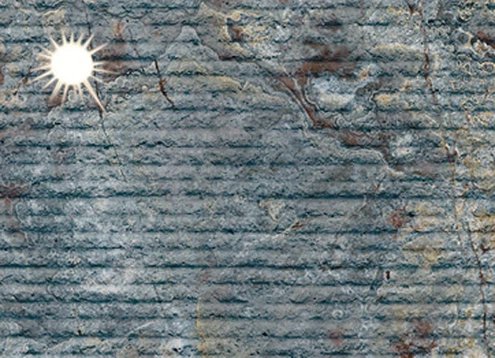

eBIPV(eSolarFacade) Stone Ridged Roman Gray
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolarFacade) Bush Hammered Ash Grey
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options

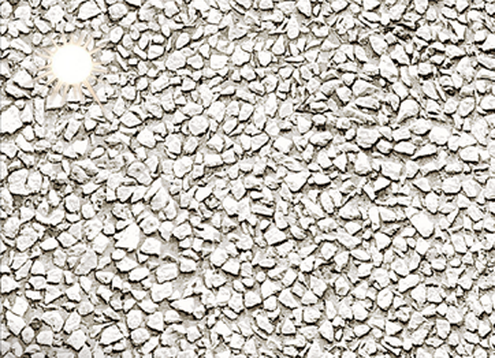

eBIPV(eSolarFacade) Bush Hammered Washed-out White
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolarFacade) Bush Hammered Pale Yellow
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolarFacade) Bush Hammered New White Sesame
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolarFacade) Bush Hammered Starry
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options

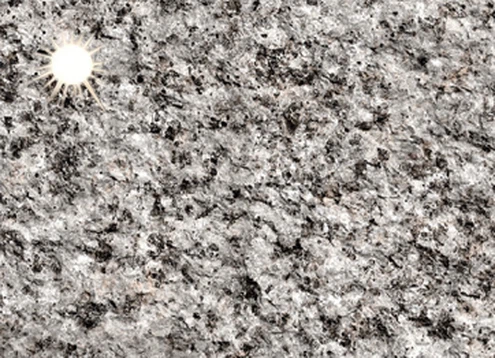

eBIPV(eSolarFacade) Bush Hammered Black Sesame
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolarFacade) Bush Hammered Magnolia
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolarFacade) Bush Hammered Dandy Gray
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolarFacade) Bush Hammered Freespirit Blue-gray
Specifications (mm): 1140x570
Custom dimensions available
Customizable Color options
eBIPV(eSolaFacade)
Winner of the 123th Paris International Exhibition of Invention
And the 76th Nuremberg International Exhibition of Inventions Award
eBIPV (eSolarFacade)
Technical Parameters
Energy Efficiency Comparison:
Power Efficiency:60% HIGHER than glass BIPV with 60% transmittance(CQC/TUV certification)
Carbon Emissions:54.6% lower than glass BIPV(BV certification)
Electrical Specifications
Test Conditions :STC(Standard Test Conditions 1000 W/m2-AM 1.5 -Temperature 25°C)
Maximum Power (Pmax) :59.23~ 166.62 W
Maximum Power Voltage (Vpmax) :20.70 ~29.22 V
Maximum Power Current (Ipmax): 2.86 ~ 5.70 A
Open Circuit Voltage(Voc) :24.18 ~35.52V
Short Circuit Current (Isc) :3.15 ~ 6.17A
Module Efficiency :9.12% ~17.63%
Maximum System Voltage (VDC) :1000 V (TUV/CE/CB/CQC/UKCA)
Series Fuse Rating: 25 A
Power & Other Electrical Specification Tolerance: 5%
Mechanical Properties
Module Weight :15.28kg/mXNUMX (variable for different texture)
Dimensions(Lx W x T): 1140x570x30mm,1200x600x30mm,1254x751x30mm,1260x746x30mm
Maximum Surface Load(Wind / Snow) :2400 Pa rear & front
Hail Impact Resistance :Ø25mm @23.0 m/s
Glass :No
Back support: Aluminum honeycomb composite panel aluminum frame
Cables & Connectors :300mm,1000mm, 1200mm,4mmXNUMX
Surface material: photon eCovering (high durability, UV resistance)
Backsheet :eCovering (High durability, UV resistant)
Bypass diode: diode x2
Junction Box :Ip68 rated,TUV certified
Temperature Ratings
Temperature coefficient of junction box short-circuit current (Isc): 0.036% /*C
Temperature coefficient of open circuit voltage (Voc): 0.25% /*C
Temperature coefficient of maximum power (Pmax): -0.30% /*C
Nominal Module Operating Temperature ：42±3°C
Operating Temperature :-40°C~+85°C
Application
Building exterior walls
"Photovoltaic technology empowers natural stone surfaces, revolutionizing traditional curtain wall energy. Turn every inch of building texture into a light container. Opt for this innovation!"
Building exterior walls
"Excess daytime electricity activates luminous crystals, releasing nebula - like soft light. The building facade becomes a giant energy hourglass, rewriting time laws with light and shadow. Amazing!"
Building exterior walls
"Digital engraving meets photovoltaic genes, reconstructing the energy aesthetics of building surfaces. Innovative materials blend tech and art for building exteriors. "
Hotel Club
"The lines are PHOMI's love letter to the sun. The thousand - year - old stone veins flow with electric love under sunlight. Unique design blends nature and tech for club facades."
Hotel Club exterior walls
"Photovoltaic feathers evoke wood's life memory. Each wood grain turns dawn and dusk light into green power. Eco - friendly and aesthetic, use PHOMI materials for club exterior walls. "
Hotel Club
"Transform abstract electric currents into brick vital signs, enhancing brick - wall architecture perception. PHOMI's innovative materials offer unique club facade experiences. Don't miss!"
Commercial space exterior wall
"Blending stone - formation history with the clean energy revolution, these materials boost commercial architecture's historical depth. They create a unique, eco - friendly facade. Upgrade your commercial space now!"
Civilian villa exterior wall
"Transform your villa's exterior wall into a thinking energy artist. These materials bring creativity and sustainability, making your home stand out. Enhance your villa's charm!"
Industrial park exterior wall
As sunlight hits the textures, the industrial park wall shimmers like it's breathing. It combines mechanical aesthetics with clean energy for a futuristic eco - scene. Opt for these innovative materials!
Building exterior walls
"The teaching building facade materials feature "breathing" light and shadow matrices. They enable silent, intelligent chats between the teaching space and natural energy. Enhance learning with eco - smart facades."
Facade of educational institution
"The educational institution facade materials blend photosynthesis and photoelectric conversion. The building becomes a living, breathing entity. Create a dynamic campus. "
Hospital facade
"The hospital facade materials have a timeless charm, with a warm luster unique to time. They offer a soothing presence. Build a healing environment. "

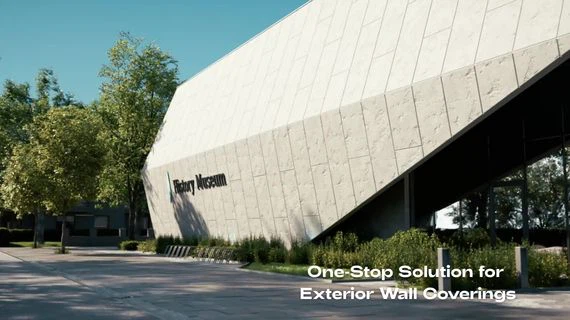

Museum wall
"Our museum exterior wall materials turn regional cultural symbols into clean energy. Historical memories "grow" via photosynthesis. Let your museum's wall be a cultural and eco - friendly statement."
Office building wall
"Our office exterior wall materials have a light energy matrix. It weaves light's secret language, transforming rugged aesthetics into an energy - saving poem. "
Municipal building walls
"Our municipal building exterior wall materials are memory containers and clean energy producers. Each kWh of electricity carries civic warmth. Make your building a sustainable civic icon!"
Installation
Use a laser rangefinder and digital level for wall positioning. Secure the custom keel with an impact drill using mechanical anchoring. Align the panel slots with the keel for initial fixation, then fine-tune and reinforce with specialized connectors to ensure precision and efficiency.
1.Attach/Secure the aluminum brackets to the back of the honeycomb panel with bolts and nuts.
2.Secure the aluminum rail with expansion bolts to the solid wall. Insert the aluminum brackets of honeycomb panel into the aluminum rail on the solid wall, then secure the brackets to the rail with screws (bolts and nuts).
Maintain
1. Cleaning:
After acceptance, the frequency of cleaning should be determined based on the level of wall contamination, with a minimum of once a year.
Use hand soap mixed with tap water, and avoid using organic solvents.
2. Curtain wall inspection and maintenance:
A comprehensive inspection of the curtain wall should be conducted every five years, includ ing the panels, sealing strips, and sealants.
Tighten any loose bolts, and for corroded connectors, remove rust and repaint or replace them.
Loose or damaged panels should be repaired or replaced.
Sealants and sealing strips that have fallen off or are damaged should be repaired or replaced.
Damaged components or connectors should be replaced or reinforced if the anchoring is loose.
Regularly check the drainage system, and clear any blockages.
Any loose or damaged hardware should be replaced.
A comprehensive overhaul should be carried out after a natural disaster.
Off-grid energy storage system
Civilian eBIPV (eSolarFacade):
For residential eBIPV (eSolarFacade) solar panels, we'll provide you with an off-grid energy storage system, including batteries, controllers, and inverters, based on your purchase quantity. For pricing on eBIPV (eSolarFacade) and energy storage systems, please contact your local Fumei distributor.
Commercial eBIPV (eSolarFacade):
The installation of the electrical part should be carried out simultaneously with the curtain wall installation, and should be carried out strictly in accordance with the special electrical design drawings and the design and construction specifications of the electrical profession.
Carbon-Neutral Building System
PHOMI Solutions
One partner, Complete Coverage:
Exterior: Wall and floor
Interior decoration: wall, ceiling and floor
All your needs met through a single supplier
Substantial Cost Efficiency
Reduce total decoration expenses by 20-30% with our comprehensive building solutions.
Complete Zero-Carbon Building Solution
Replace traditional high polluting materials with our integrated exterior and interior eCovering system.
